How to work with CCStudio and TMS320C6713DSK kit

First of all we connect the kit by cable from power adopter which was provided with kit and connect the kit to the USB socket of computer by USB cable.

After passing diagnostic test of the kit by SD (System Diognostic) software. Double click the CCStudio 6713 icon after clicking this icon, showing a window like above fig No-1

Fig-1

After some few second you can see one more window like fig-2, on your computer desktop.

fig-2

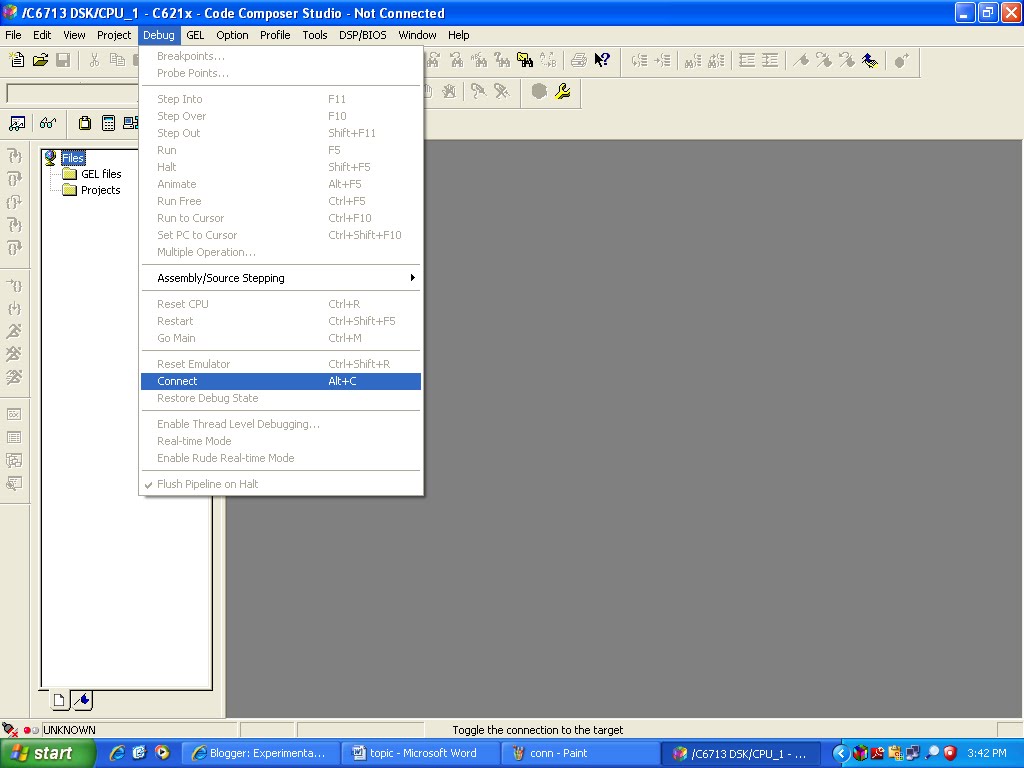

In fig-2 this window showing "No Target Connected" in yellow box at lower left side of this window, (the target is 67xxdsp kit) for connect the target select connect from debug menu or press Alt+C key.fig-3

fig-3

fig-4

After connect the kit (target) to software CCStudio a new yellow tag "Target is now connected" will show at lower left side. fig-4

fig-5

We have to make a new project for run the any programme, first off all click the project button like as in fig-5 then click new. A window will appear on computer screen like as in fig-6 there are some heading in this window like project name, location, project type and target.
First write the name of project in 'Project Name' space, give the location in 'Location' space where you want to save your project, Project type is '.out' by default and Target(kit) must be as you are using e.g. 62XX, 64XX or 67XX.

fig-6

fig-7

Syllabus of Digital Signal Processing Lab.

Subject Code TEN – 751
Note:- Minimum of 10 experiments should be performed out of the following using
DSP kit TMS 320 CXX.
1 To generate sinusoidal, square and triangular waveforms
2 To study response of audio (analog) input
3 To study response and stability of linear shift invariant
system with given unit sample response
4 To study addition and multiplication of sequences
5 To study matrix multiplication
6 To find discrete Fourier Transform of given sequence
7 To implement Geartzd Algorithm
8 To implement FFT decimation in time algorithm
9 To implement floating point arithmetic
10 To implement Tone generation
11 To implement LPC computation
12 To implement Coding schemes
Note:- The institute/college may add any three experiments according to
facility available.

Subject Code EEC-652
1. With the help of Fourier series, make a square wave from sine wave and cosine waves. Find out coefficient values.
2. Evaluate 4 point DFT of and IDFT of x(n) = 1, 0 ≤ n ≤ 3; 0 elsewhere.
3. Implement the FIR Filters for 2 KHz cutoff frequency and 2 KHz bandwidth for band pass filter.
4. Design FIR filter using Fourier series expansion method.
5. Implement IIR low pass filter for a 4 KHz cutoff frequency and compare it the FIR filter with the same type use chirp as input signal.
6. Verify Blackman and Hamming windowing techniques for square wave as an input which window will give good results.
7. Implement the filter functions.
8. Generate DTMF sequence 1234567890*# and observe its spectrogram.
9. Generate an Amplitude Modulation having side low frequencies 1200 Hz and 800 Hz. Observe and verify the theoretical FFT characteristics with the observed ones.

10. Generate Frequency Modulation having carrier frequencies 1 KHz and modulating frequency 200 Hz with the modulation index of 0.7. Observe and verify the theoretical FFTcharacteristics with the observed ones.

11. Generate an FSK wave form for transmitting the digital data of the given bit sequence. Predict and verify the FFT for the same one.

12. To study the circular convolution.
